TruthTableDiskManager Class Reference

Data persistace class for the truth tables. More...

#include <truthTableDiskManager.hpp>

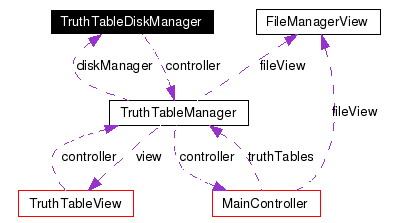

Collaboration diagram for TruthTableDiskManager:

[legend]List of all members.

Public Member Functions
	TruthTableDiskManager (TruthTableManager *controller)
	Constructor.
virtual	~TruthTableDiskManager ()
	Destructor.
bool	saveTables (list< TruthTable * > tables, wxString fileName)
	Saves the table collection to a file.
bool	openTables (wxString fileName)
	Opens a truth table file.
Private Member Functions
bool	saveTableList (list< TruthTable * > tables)
	Saves a table list to the file.
bool	saveTable (TruthTable *table)
	Saves a table to the file.
bool	saveVector (vector< vector< bool > > booleans)
	Saves a boolean vector to the file.
bool	readTable (wxString name, int inputs, int outputs, list< TruthTable * > *tableList, FlexLexer *lexer)
	Reads a truth table from a stream.
void	returnTables (list< TruthTable * > *tableList)
	Returns the tables to the controller.
Private Attributes
TruthTableManager *	controller
	Truth table controller.
wxTextFile	file
	Text file to be written/read.

---

Detailed Description

Data persistace class for the truth tables.

The data persistance class for the truth tables.

Author:

Bernat Ràfales Mulet <the_bell@users.sourceforge.net>

Version:

Revision

1.5

Definition at line 43 of file truthTableDiskManager.hpp.

---

Constructor & Destructor Documentation

TruthTableDiskManager::TruthTableDiskManager (  TruthTableManager *  controller  )

Constructor. Parameters: controller  the truth table controller. Definition at line 30 of file truthTableDiskManager.cpp. References controller.

TruthTableDiskManager::~TruthTableDiskManager (   )  [virtual]

Destructor. Definition at line 37 of file truthTableDiskManager.cpp.

---

Member Function Documentation

bool TruthTableDiskManager::openTables (  wxString  fileName  )

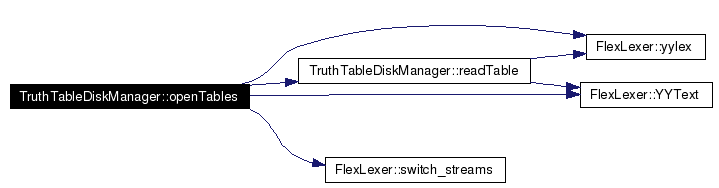

Opens a truth table file. Parameters: fileName  the file containing the truth tables. Returns: True iif the file was opened correctly. Definition at line 138 of file truthTableDiskManager.cpp. References IDENTIFIER, LOWER, NUMBER, readTable(), FlexLexer::switch_streams(), UPPER, yyFlexLexer, FlexLexer::yylex(), and FlexLexer::YYText(). Referenced by TruthTableManager::appendTables(), and TruthTableManager::openPFile(). Here is the call graph for this function:

bool TruthTableDiskManager::readTable (  wxString  name, int  inputs, int  outputs, list< TruthTable * > *  tableList, FlexLexer *  lexer )  [private]

Reads a truth table from a stream. Parameters: name  the table name. inputs  the table input number. outputs  the table output number. tableList  list of tables were the table read has to be appended. lexer  the input stream. Returns: True iif the table was read correctly. Definition at line 225 of file truthTableDiskManager.cpp. References NUMBER, FlexLexer::yylex(), and FlexLexer::YYText(). Referenced by openTables(). Here is the call graph for this function:

void TruthTableDiskManager::returnTables (  list< TruthTable * > *  tableList  )  [private]

Returns the tables to the controller. Parameters: tableList  the list of tables to return. Definition at line 274 of file truthTableDiskManager.cpp. References controller, and TruthTableManager::newTable(). Here is the call graph for this function:

bool TruthTableDiskManager::saveTable (  TruthTable *  table  )  [private]

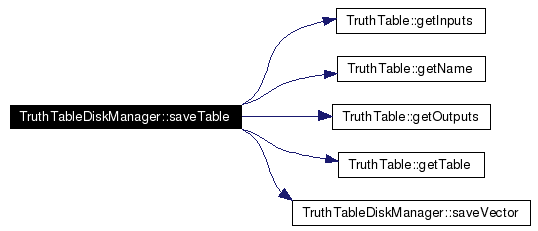

Saves a table to the file. Parameters: table  table to be saved. Returns: True iif the table was saved correctly. Definition at line 98 of file truthTableDiskManager.cpp. References file, TruthTable::getInputs(), TruthTable::getName(), TruthTable::getOutputs(), TruthTable::getTable(), and saveVector(). Referenced by saveTableList(). Here is the call graph for this function:

bool TruthTableDiskManager::saveTableList (  list< TruthTable * >  tables  )  [private]

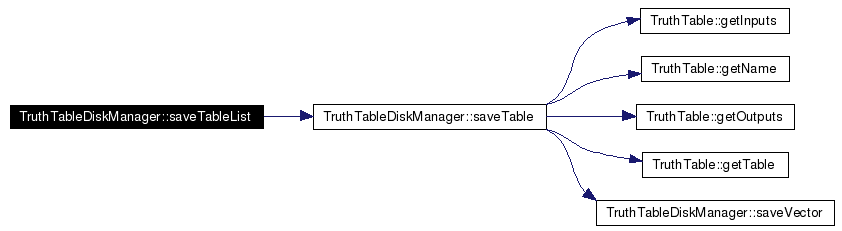

Saves a table list to the file. Parameters: tables  the table list. Returns: True iif the table list was saved correctly. Definition at line 78 of file truthTableDiskManager.cpp. References file, and saveTable(). Referenced by saveTables(). Here is the call graph for this function:

bool TruthTableDiskManager::saveTables (  list< TruthTable * >  tables, wxString  fileName )

Saves the table collection to a file. Parameters: tables  the table collection. fileName  the file name to be saved. Returns: True iif the tables were saved correctly. Definition at line 48 of file truthTableDiskManager.cpp. References file, and saveTableList(). Referenced by TruthTableManager::saveFile(). Here is the call graph for this function:

bool TruthTableDiskManager::saveVector (  vector< vector< bool > >  booleans  )  [private]

Saves a boolean vector to the file. Parameters: booleans  the boolean vector to save. Returns: True iif the vector was saved correctly. Definition at line 113 of file truthTableDiskManager.cpp. References file. Referenced by saveTable().

---

Member Data Documentation

TruthTableManager* TruthTableDiskManager::controller [private]

Truth table controller. Definition at line 53 of file truthTableDiskManager.hpp. Referenced by returnTables(), and TruthTableDiskManager().

wxTextFile TruthTableDiskManager::file [private]

Text file to be written/read. Definition at line 55 of file truthTableDiskManager.hpp. Referenced by saveTable(), saveTableList(), saveTables(), and saveVector().

---

The documentation for this class was generated from the following files:

• /home/enzo/treballs/fib/pfc/nanocomp/src/truthTableDiskManager.hpp
• /home/enzo/treballs/fib/pfc/nanocomp/src/truthTableDiskManager.cpp

---
