Rule Class Reference

Model class for a rule. More...

#include <rule.hpp>

Collaboration diagram for Rule:


Public Member Functions
	Rule (int width, int height)
	Constructor.
virtual	~Rule ()
	Destructor.
bool	operator== (Rule rule)
	Compares two rules.
bool	cellChanged (int x, int y, int status, GridType layout)
	Changes the status of a cell to status.
Grid	getInitialGrid ()
	Member accessor.
void	setInitialGrid (Grid newGrid)
	Sets the grid for the rule initial configuration.
Grid	getFinalGrid ()
	Member accessor.
void	setFinalGrid (Grid newGrid)
	Sets the grid for the rule final configuration.
bool	cellChanged (int x, int y, GridType layout)
	Cell status change.
int	getWidth ()
	Member accessor.
int	getHeight ()
	Member accessor.
bool	equals (Rule *rule)
	Tests two rules for equality.
bool	sameInitialFinal ()
	Compares the initial and final configurations of a rule.
bool	valid ()
	Checks if a rule is valid.
void	print ()
matrix	getInitialMatrix ()
	Member accessor.
matrix	getFinalMatrix ()
	Member accessor.
Private Attributes
int	width
	Rule width.
int	height
	Rule height.
Grid	initialGrid
	Rule initial configuration.
Grid	finalGrid
	Rule final configuration.

Detailed Description

Model class for a rule.

This is a class representing a rule.

Author:: Bernat Ràfales Mulet <the_bell@users.sourceforge.net>

Version:

Revision: 1.14

Definition at line 46 of file rule.hpp.

Constructor & Destructor Documentation

Rule::Rule ( int width,

int height

)

Constructor.

Parameters:

width the rule width.

height the rule height.

Definition at line 33 of file rule.cpp.

Rule::~Rule ( ) [virtual]

Destructor.

Definition at line 42 of file rule.cpp.

Member Function Documentation

bool Rule::cellChanged ( int x,

int y,

GridType layout

)

Cell status change.
This is called from the manager when a cell recieves a change status signal We must know the current status and try to set the new one. Cell status changes are "Don't care" -> "Enabled" -> "Disabled"
Parameters:

x x coordinate.

y y coordinate.

layout the grid, can be the initial configuration or the final one.

Returns:
True if the status change was made correctly.

Definition at line 97 of file rule.cpp.
References finalGrid, initialGrid, nDISABLED, nDONTCARE, nENABLED, nFINAL, and nINITIAL.

bool Rule::cellChanged ( int x,

int y,

int status,

GridType layout

)

Changes the status of a cell to status.

Parameters:

x the x coordinate.

y the y coordinate.

status the status to set.

layout the grid to change, can be the initial layout or the final layout.

Returns:
True if the change was made successfully.

Definition at line 169 of file rule.cpp.
References finalGrid, initialGrid, nFINAL, and nINITIAL.
Referenced by RuleDiskManager::readRule().

bool Rule::equals ( Rule * rule )

Tests two rules for equality.

Parameters:

rule the rule to be compared.

Returns:
True if the rules were equal. This is, have the same width and height and all the cells have the same status. False otherwise.

Definition at line 197 of file rule.cpp.
References getHeight(), and getWidth().
Here is the call graph for this function:

Grid Rule::getFinalGrid ( )

Member accessor.

Returns:
The final grid of the rule.

Definition at line 81 of file rule.cpp.
References finalGrid.
Referenced by Simulation::applyRule(), operator==(), and RuleDiskManager::saveRule().

matrix Rule::getFinalMatrix ( )

Member accessor.

Returns:
The initial grid as a matrix.

Definition at line 276 of file rule.cpp.
References finalGrid, and Grid::getCells().
Here is the call graph for this function:

int Rule::getHeight ( )

Member accessor.

Returns:
The rule height.

Definition at line 61 of file rule.cpp.
References height.
Referenced by Simulation::applyRule(), equals(), operator==(), sameInitialFinal(), RuleDiskManager::saveRule(), and valid().

Grid Rule::getInitialGrid ( )

Member accessor.

Returns:
The initial rule grid.

Definition at line 71 of file rule.cpp.
References initialGrid.
Referenced by Simulation::applyRule(), operator==(), and RuleDiskManager::saveRule().

matrix Rule::getInitialMatrix ( )

Member accessor.

Returns:
The initial grid as a matrix.

Definition at line 266 of file rule.cpp.
References Grid::getCells(), and initialGrid.
Here is the call graph for this function:

int Rule::getWidth ( )

Member accessor.

Returns:
The rule width.

Definition at line 51 of file rule.cpp.
References width.
Referenced by Simulation::applyRule(), equals(), operator==(), SimulationManager::printRule(), Simulation::printRule(), Simulation::ruleApplicable(), sameInitialFinal(), RuleDiskManager::saveRule(), and valid().

bool Rule::operator== ( Rule rule )

Compares two rules.

Parameters:

rule the rule to be compared.

Returns:
True if the two rules equal, false otherwise.

See also:
equals(Rule *rule).

Definition at line 288 of file rule.cpp.
References finalGrid, getFinalGrid(), getHeight(), getInitialGrid(), getWidth(), and initialGrid.

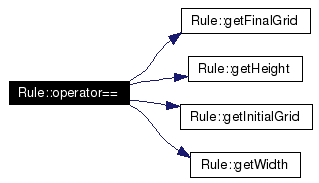

Here is the call graph for this function:

void Rule::print ( )

bool Rule::sameInitialFinal ( )

Compares the initial and final configurations of a rule.

Returns:
True if the initial and final configurations equal.

Definition at line 223 of file rule.cpp.
References finalGrid, getHeight(), getWidth(), and initialGrid.
Here is the call graph for this function:

void Rule::setFinalGrid ( Grid newGrid )

Sets the grid for the rule final configuration.

Parameters:

newGrid the grid.

Definition at line 155 of file rule.cpp.
References finalGrid, and Grid::init().

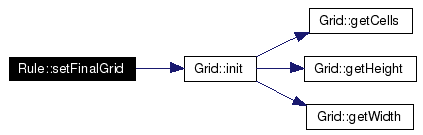

Here is the call graph for this function:

void Rule::setInitialGrid ( Grid newGrid )

Sets the grid for the rule initial configuration.

Parameters:

newGrid the grid.

Definition at line 145 of file rule.cpp.
References Grid::init(), and initialGrid.
Here is the call graph for this function:

bool Rule::valid ( )

Checks if a rule is valid.

Returns:
True if the rule is valid. This is, if there's no cells on the final configurations in the nENABLED mode and the corresponding cell n the initial configuration on the nDONTCARE status. False otherwise.

Definition at line 246 of file rule.cpp.
References finalGrid, getHeight(), getWidth(), initialGrid, nDISABLED, nDONTCARE, and nENABLED.
Here is the call graph for this function:

Member Data Documentation

Grid Rule::finalGrid [private]

Rule final configuration.

Definition at line 75 of file rule.hpp.
Referenced by cellChanged(), getFinalGrid(), getFinalMatrix(), operator==(), sameInitialFinal(), setFinalGrid(), and valid().

int Rule::height [private]

Rule height.

Definition at line 71 of file rule.hpp.
Referenced by getHeight().

Grid Rule::initialGrid [private]

Rule initial configuration.

Definition at line 73 of file rule.hpp.
Referenced by cellChanged(), getInitialGrid(), getInitialMatrix(), operator==(), sameInitialFinal(), setInitialGrid(), and valid().

int Rule::width [private]

Rule width.

Definition at line 69 of file rule.hpp.
Referenced by getWidth().

The documentation for this class was generated from the following files:

/home/enzo/treballs/fib/pfc/nanocomp/src/rule.hpp
/home/enzo/treballs/fib/pfc/nanocomp/src/rule.cpp

Generated on Fri Sep 1 23:59:35 2006 for NanoComp by

1.4.6
