LayoutDiskManager Class Reference

Data persistance class for spaces. More...

#include <layoutDiskManager.hpp>

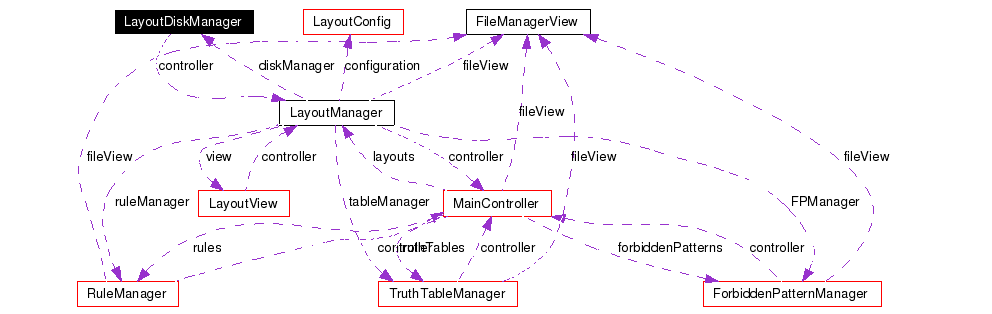

Collaboration diagram for LayoutDiskManager:

[legend]List of all members.

Public Member Functions
	LayoutDiskManager (LayoutManager *controller)
	Constructor.
virtual	~LayoutDiskManager ()
	Destructor.
bool	saveLayout (LayoutConfig *layoutConfig, wxString fileName)
	Saves a space into a file.
bool	openLayout (wxString fileName)
	Opens a space file.
Private Member Functions
LayoutConfig *	readLayout (int width, int height, FlexLexer *lexer)
	Reads a space from a lexer.
bool	saveLayout (LayoutConfig *layoutConfig)
	Saves a space.
bool	saveGrid (Grid grid)
	Saves a grid.
void	returnLayout (LayoutConfig *layoutConfig)
	Returns a space to the controller.
Private Attributes
LayoutManager *	controller
	Space controller.
wxTextFile	file
	File to be written/read.

---

Detailed Description

Data persistance class for spaces.

This class manages all the data persistance of space files.

Author:

Bernat Ràfales Mulet <the_bell@users.sourceforge.net>

Version:

Revision

1.5

Definition at line 41 of file layoutDiskManager.hpp.

---

Constructor & Destructor Documentation

LayoutDiskManager::LayoutDiskManager (  LayoutManager *  controller  )

Constructor. Parameters: controller  the space controller. Definition at line 29 of file layoutDiskManager.cpp. References controller.

LayoutDiskManager::~LayoutDiskManager (   )  [virtual]

Destructor. Definition at line 36 of file layoutDiskManager.cpp.

---

Member Function Documentation

bool LayoutDiskManager::openLayout (  wxString  fileName  )

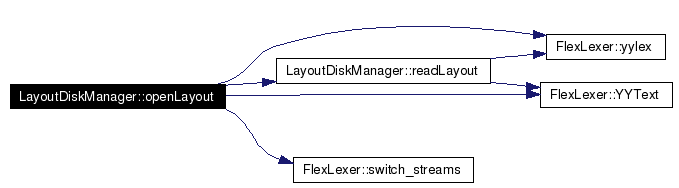

Opens a space file. Parameters: fileName  the file to be opened. Returns: True iif the file was correctly opened. Definition at line 178 of file layoutDiskManager.cpp. References NUMBER, readLayout(), FlexLexer::switch_streams(), yyFlexLexer, FlexLexer::yylex(), and FlexLexer::YYText(). Referenced by LayoutManager::openPFile(). Here is the call graph for this function:

LayoutConfig * LayoutDiskManager::readLayout (  int  width, int  height, FlexLexer *  lexer )  [private]

Reads a space from a lexer. This method reads a width*height space from the lexer. Parameters: width  expected width of the space to be read. height  expected height of the space to be read. lexer  lexer containing the stream where to read. Returns: The space read. NULL if the space couldn't be read. Definition at line 245 of file layoutDiskManager.cpp. References nDISABLED, nENABLED, NUMBER, FlexLexer::yylex(), and FlexLexer::YYText(). Referenced by openLayout(). Here is the call graph for this function:

void LayoutDiskManager::returnLayout (  LayoutConfig *  layoutConfig  )  [private]

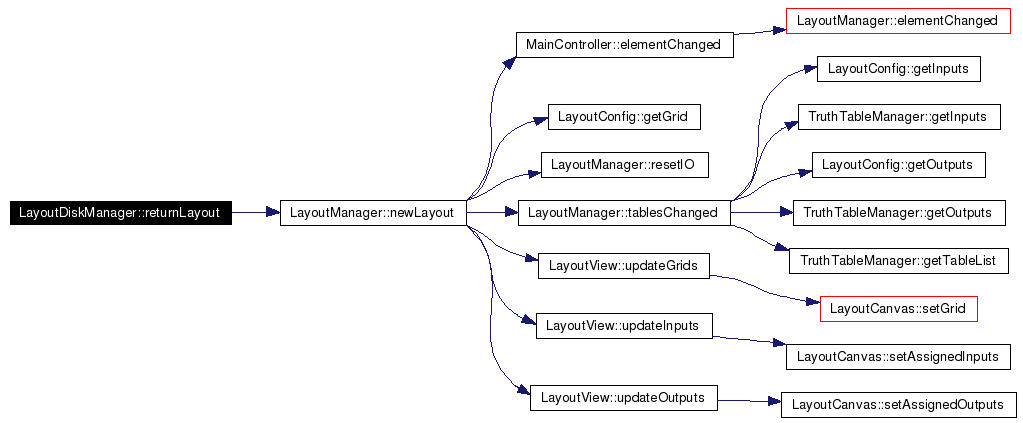

Returns a space to the controller. Parameters: layoutConfig  the space to be added. Definition at line 325 of file layoutDiskManager.cpp. References controller, and LayoutManager::newLayout(). Here is the call graph for this function:

bool LayoutDiskManager::saveGrid (  Grid  grid  )  [private]

Saves a grid. Parameters: grid  the grid to be saved. Returns: True iif the grid was correctly saved. Definition at line 101 of file layoutDiskManager.cpp. References CELL_SPACE, Grid::getHeight(), Grid::getWidth(), line, nDISABLED, nDONTCARE, nENABLED, nINPUT, nNOSPACE, and nOUTPUT. Referenced by saveLayout(). Here is the call graph for this function:

bool LayoutDiskManager::saveLayout (  LayoutConfig *  layoutConfig  )  [private]

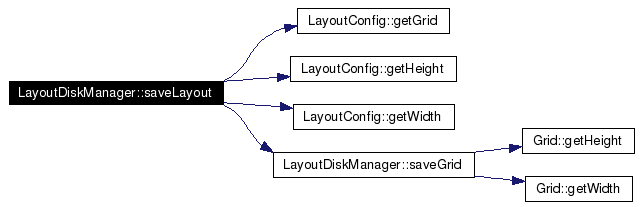

Saves a space. The space is saved to the corresponding file previously opened. Parameters: layoutConfig  the space to be saved. Returns: True iif the space was correctly saved. Definition at line 79 of file layoutDiskManager.cpp. References file, LayoutConfig::getGrid(), LayoutConfig::getHeight(), LayoutConfig::getWidth(), and saveGrid(). Here is the call graph for this function:

bool LayoutDiskManager::saveLayout (  LayoutConfig *  layoutConfig, wxString  fileName )

Saves a space into a file. Parameters: layoutConfig  space to be saved. fileName  the file name where to save. Returns: True iif the space was correctly saved. Definition at line 47 of file layoutDiskManager.cpp. References file. Referenced by LayoutManager::saveFile(), LayoutManager::saveFileAs(), and LayoutManager::saveFilename().

---

Member Data Documentation

LayoutManager* LayoutDiskManager::controller [private]

Space controller. Definition at line 51 of file layoutDiskManager.hpp. Referenced by LayoutDiskManager(), and returnLayout().

wxTextFile LayoutDiskManager::file [private]

File to be written/read. Definition at line 53 of file layoutDiskManager.hpp. Referenced by saveLayout().

---

The documentation for this class was generated from the following files:

• /home/enzo/treballs/fib/pfc/nanocomp/src/layoutDiskManager.hpp
• /home/enzo/treballs/fib/pfc/nanocomp/src/layoutDiskManager.cpp

---
